Appearance
Collection links with image
This guide describes the Collection links with image section.

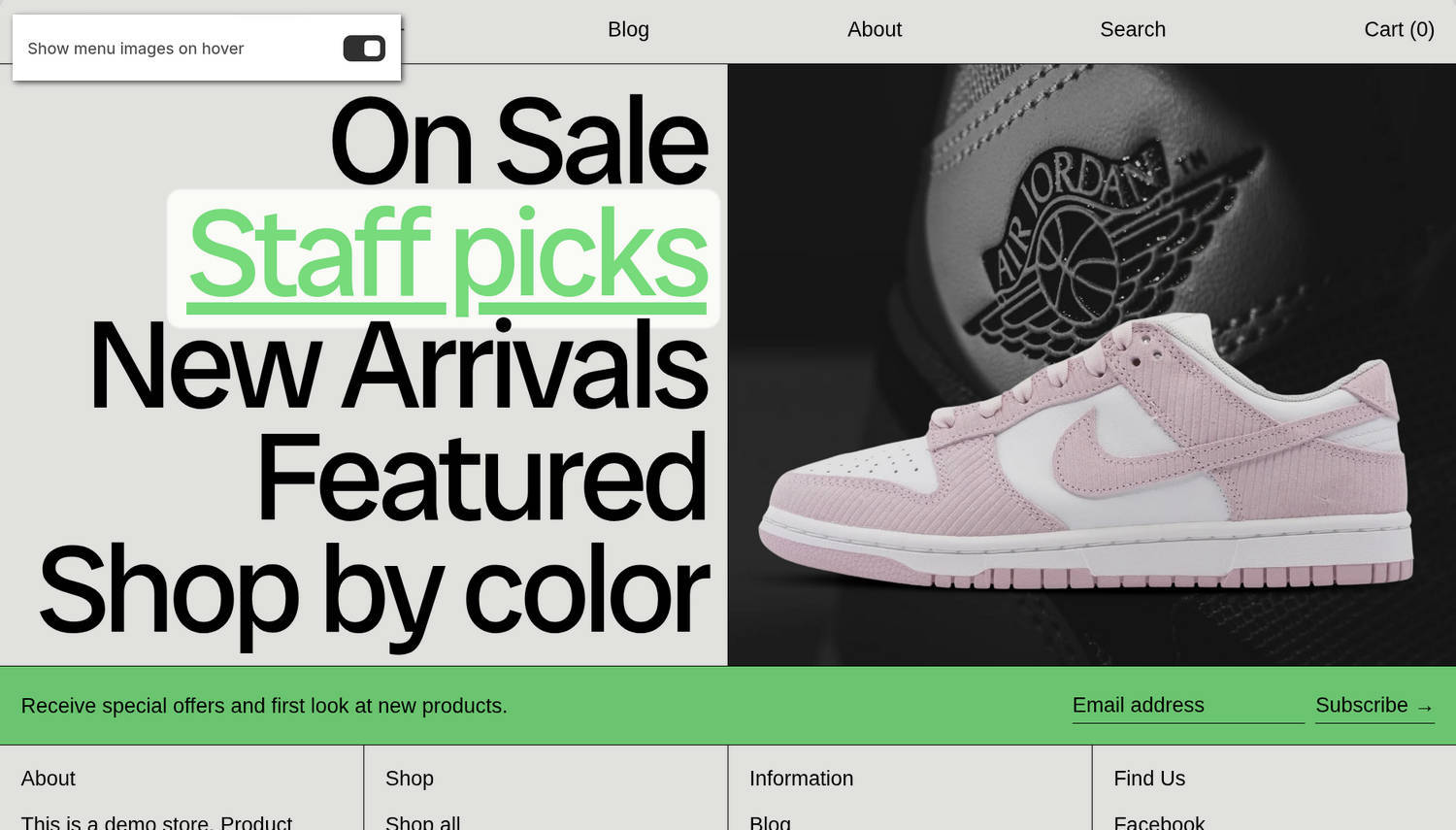

Use the section on a page to display links to a selection of collection pages side-by-side with an image.
For general guidance with modifying sections, refer to Sections overview and Shopify help: Sections and blocks.
Configure the Collection links with image section
To configure your Collection links with image section:
In Theme editor, at the top of the page, use the theme templates dropdown to select a page that contains a Collection links with image section.
Note
The section can be added to any page, except Checkout and Gift card pages. To add the section to the current page, select Add section > Collection links with image. Refer to Shopify help: Add a section.
From the side menu, select Collection links with image.
Select a setting described in the following table.
| Setting name | Description |
|---|---|
| Collections | Use the Collections picker to select collections to display inside the section. |
| Mobile font size scale | Adjust the Mobile font size scale slider to set a font size for the section's text on mobile display devices. The minimum value is -2 and the maximum is 4. |
| Desktop font size scale | Adjust the Desktop font size scale slider to set a font size for the section's text on desktop display devices. The minimum value is -2 and the maximum is 9. |
| Text alignment | Use the Text alignment options to align text inside the section to the Left, Center, or Right. |
| Text position | Use the Text position options to specify a position for the section's text. The options are Top, Middle, or Bottom. |
| Image > Image | Use the Image picker to select an image to display inside the section. |
| Image > Image position on desktop | Use the Image position on desktop options to position the section's image to the Left or Right. |
| Image > Image size on desktop | Use the Image size on desktop options to specify a width for the section's image. The options are One third, One half, and Two thirds. This setting applies to desktop display devices. |
| Image > Fit image to text | Use the Fit image to text option to turn "image fit" mode on or off. With this setting enabled, the section's image is cropped to match the size of the section's text area. On desktop display devices, enabling this setting crops the section's image to the height of the section's text area. |
| Image > Deep inset | Set the Deep inset option to on or off. With this option enabled, a margin is applied around the section's image. |
| Color > Color scheme | Use the Color scheme picker to select a color scheme for the section. Refer to Colors. |
| Theme settings | If available, select Theme settings to access additional settings for the section. Refer to Section theme settings menu. |
| Custom CSS | Select Custom CSS. In the CSS field, enter custom CSS styles to apply only to the current section. Refer to Shopify help: Add custom CSS. To apply custom styles to your entire online store, refer to Theme settings > Custom CSS. |
| Remove section | Select Remove section to delete the section from the current page. |
Note
To connect a metafield to a setting that supports metafields, select the Connect dynamic source icon displayed beside the setting in Theme editor.
To learn how to connect a metafield to a supported setting, refer to Shopify help: Connecting metafields to your theme by using the theme editor.
